Installing thermal insulation in the floor is essential for reduce heat loss In winter, avoid thermal bridges with the ground and improve the overall comfort of the home

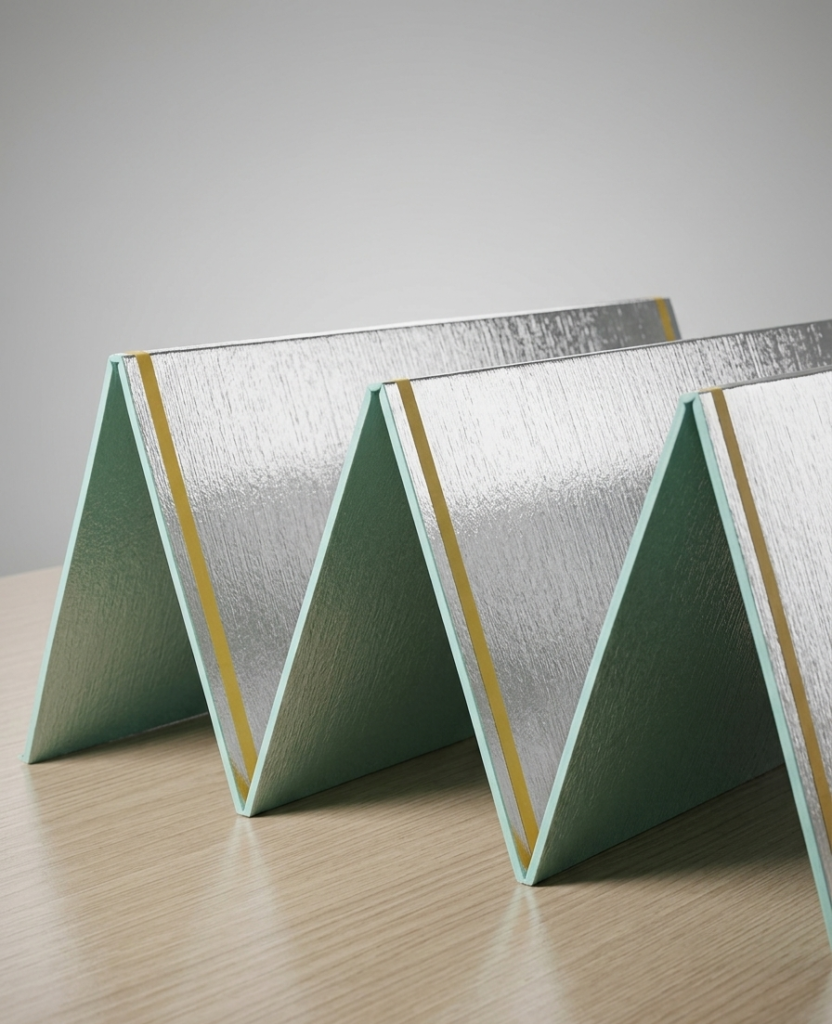

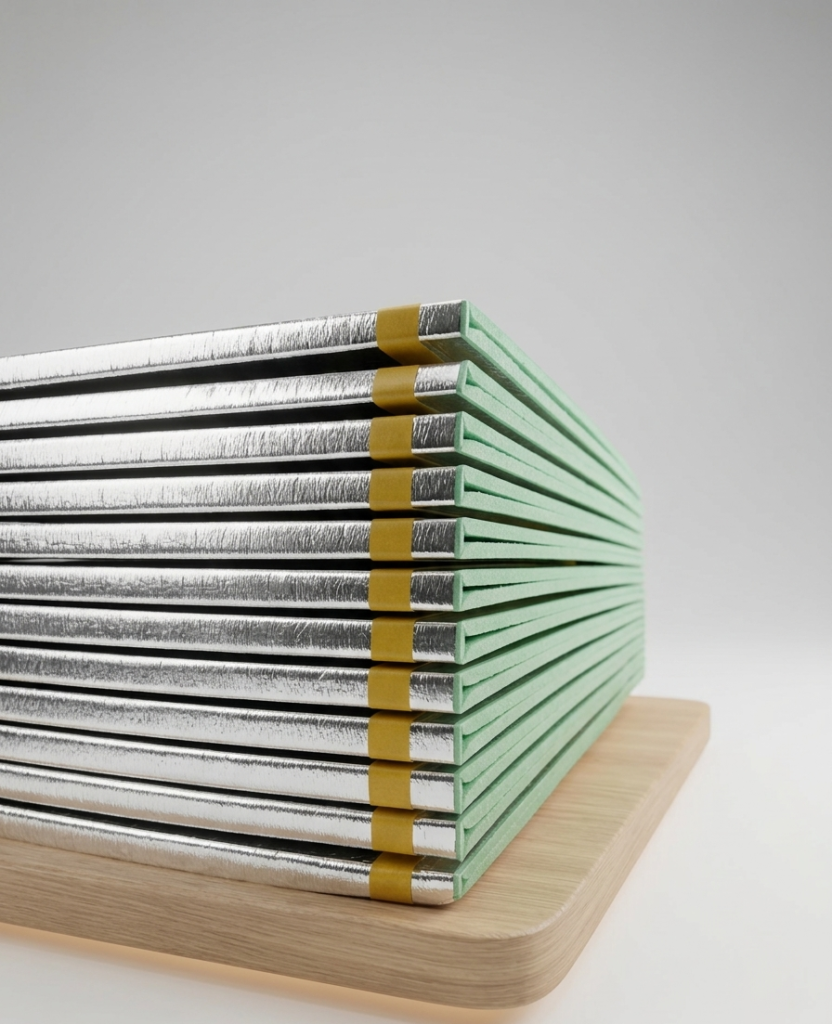

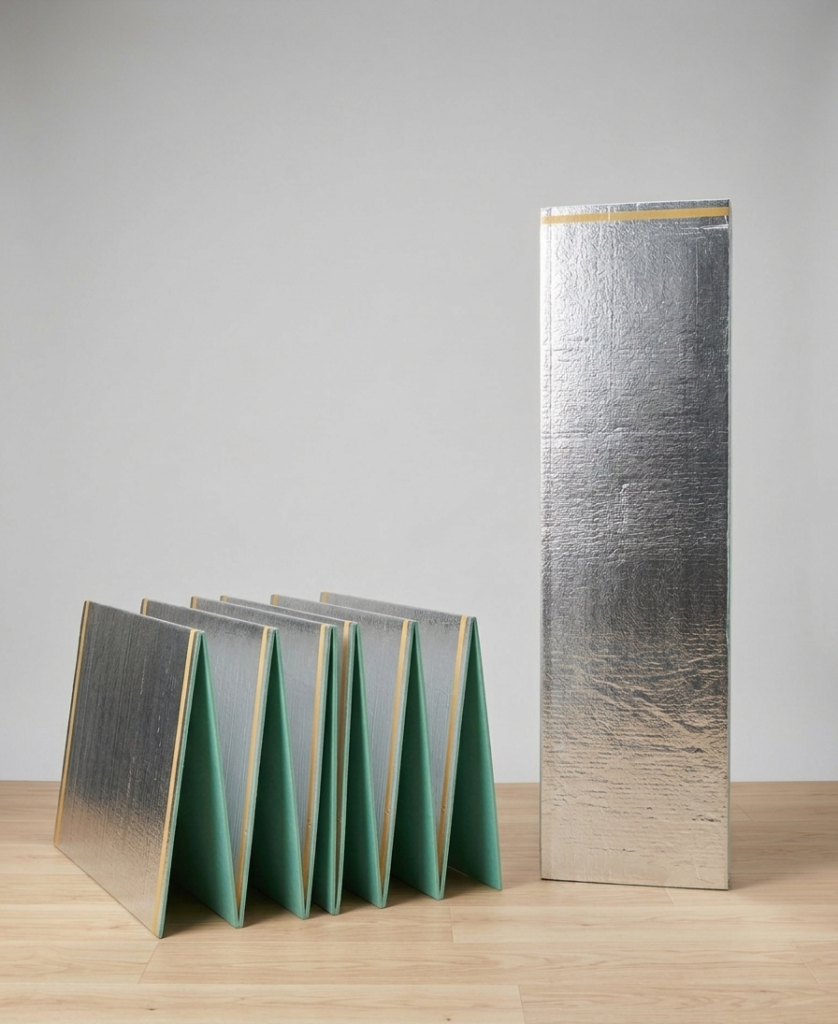

Our Cecather 5 mm thermal insulation is made of extruded polystyrene (XPS) using a thermoforming process and features a PET film reinforcement to improve its mechanical resistance and dimensional stability.
TECHNICAL CHARACTERISTICS
Thickness: 5 mm ±0.25%
Length: 7 m ±1%
Width: 1 m ±1%
Density: 28 kg/m³ ±20%
Thermal resistance: 0.18 m²K/W ±10%
Thermal conductivity: 0.029 – 0.034 W/(m·K)
Irregularity compensation: up to 4.7 mm
Compressive strength: ≥ 57 kPa
Permanent static load: ≥ 3 kPa
Dynamic load resistance: > 100,000 cycles
ACOUSTIC PERFORMANCE
Impact noise reduction: 20 dB ±5%
Acoustic insulation: up to 10% ±5%
